Günümüzün ihtiyacı ve yükselen trend olarak görülen DOME ürününü statik,  endüstriyel, mühendislik ve inşaat  mühendisliği bilgisine dayalı olarak makine modelciligi ve ahşap işleme bilgi becerisini katarak yola çıktığımız ürün tasarımı yolculuğunda uzun düşünce ve araştırmalar neticesinde mükemmellik derecesine getirmiş  olmanın gururunu yaşıyoruz.

Lakin iş burada bitmiyor, maliyet noktasında da en iyi şartlarda üretebilmek ve en iyi fiyata sunabilmenin gereği olarak  endüstri mühendisliği bilgilerimizi kırk yılı aşkın saha  tecrübenizi harmanlayıp, yalın üretim tekniğini kullanarak  en kaliteliyi en uygun şartlarda üretebilmeyi de başarmış bulunmaktayız.

Gerek malzeme yapısı gerek tasarımı, gerek üretim tekniği ile mükemmel denilebilecek  bu ürünü sizlerle bulusturabilmek niyetiyle sizleri aramızda görmekten ve  sizin misafiriniz olmaktan mutluluk duyacağız.



Yönetim Kurulu adına

Abdulvahap ATIŞ



We are proud to have brought the DOME product, which is seen as the need of today and as a rising trend, to the level of perfection as a result of long thought and research, in the product design journey that we set out by adding machine modeling and woodworking knowledge skills based on static, industrial, engineering and civil engineering knowledge.

However, the work does not end here, as a requirement to be able to produce under the best conditions at the cost point and to offer it at the best price, we have also succeeded in producing the best quality under the most suitable conditions by using our lean production technique, by blending our industrial engineering knowledge with our field experience of more than forty years.

We will be happy to see you among us and to be your guest with the intention of bringing you this product, which can be called perfect with its material structure, design and production technique.



On behalf of the Board of Directors

Abdulvahap ATIŞ

ARABIC



Domesilva Dome

Dome 4 (7m)

Standart Paket Özellikler
Standard Product Attributes

Ürün sökülüp tekrar takılabilir.
The product can be disassembled and reassembled multiple times.



Boyutlar
Dimensions

Çap - Diameter : 6.58 m
Yükseklik - Height : 4.22 m
Zemin Alanı - Floor Area : 35.56 m2
Üst Kat Alanı - Upper Floor Area : 11 m2
Duvar Kalınlığı - Wall Thickness : 11 cm


Tanıtım Videosu
Trailer

İnstagram Domesilva
Instagram

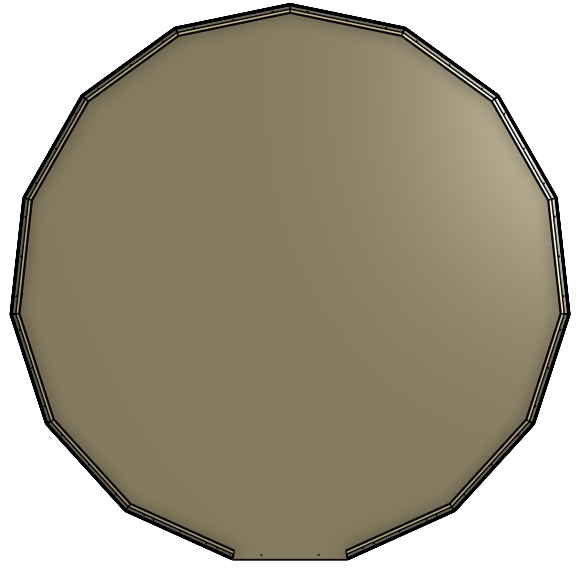

Zemin
Floor

Önemli: Kubbe sabit zemin donatısı ile bir bütündür ve ayrılamaz, ayrıldığında izolasyon bütünlüğü ortadan kalkar ve  garanti dışına çıkar.
Important: The dome is a whole with the fixed floor reinforcement and cannot be separated, when it is separated, the integrity of the insulation disappears and becomes out of warranty.

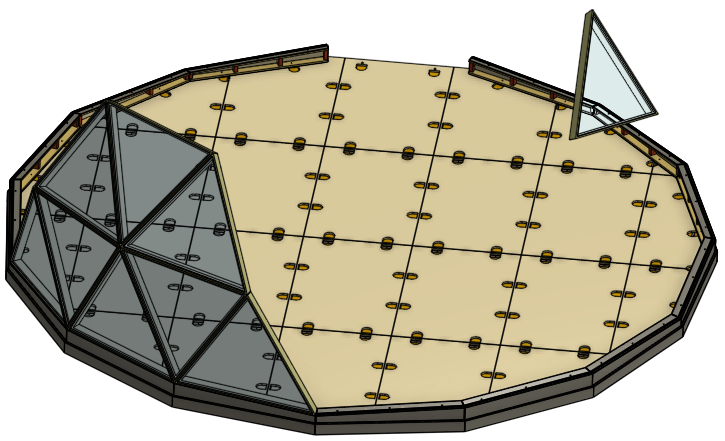

Zemin : Laminat Parke + Kontrplak+Taşyünü+Nem Bariyeri + Kontrplak
Floor : Laminate Flooring + Plywood + Rockwool + Moisture Barrier + Plywood

Ürünle birlikte verilen zemin direk yerle temas etmemelidir.
The floor supplied with the product should not come into direct contact with the ground.

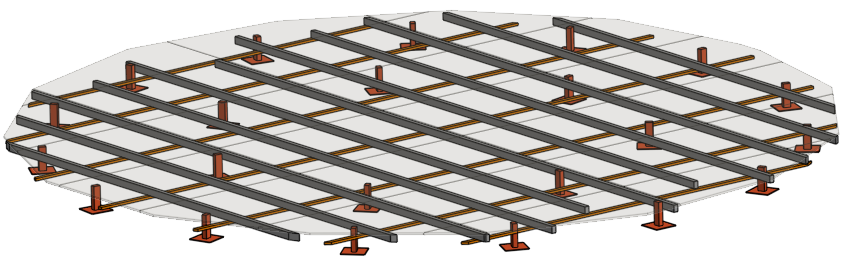

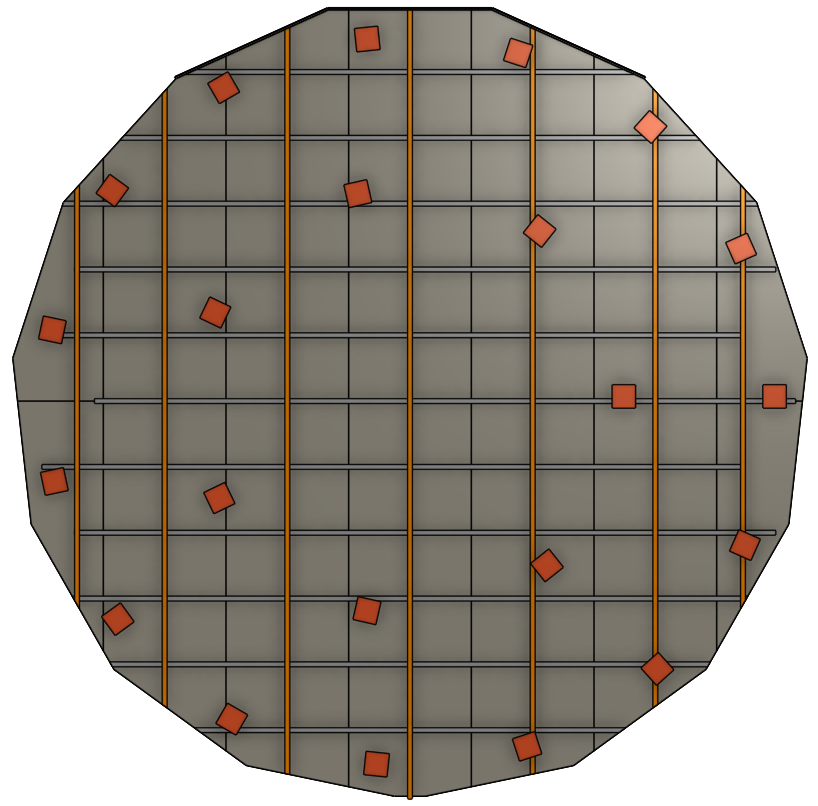

Müşteri ürünün yerden temasını kesecek yükseltiyi aşağıda ayrıntısı verilen çelik konstrüksiyon ile oluşturmalıdır. Bu çelik yapı ürüne dahil değildir.
The customer should create the elevation that will cut the contact of the product from the ground with the steel construction detailed below. This steel structure is not included in the product.

Eğer çelik yapı tedarikçiden istenmesi durumunda, kişiye özel olarak tasarlanıp fiyat teklifi verilebilir.
If the steel structure is requested from the supplier, it can be specially designed and quoted.




Malzeme
Materials

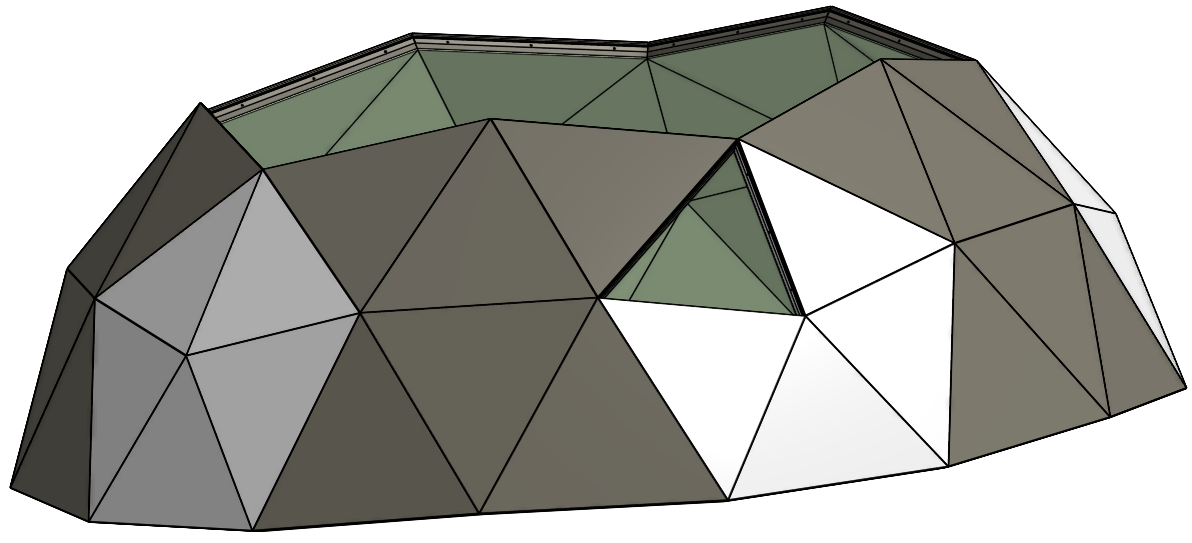

Dış Kaplama : Alüminyum, epoksi astar, akrilik boya. Exterior : Aluminum, epoxy primer, acrylic paint

Gövde : Kontrplak Body : Plywood

İzolasyon : Nem Bariyeri ve Taşyünü. Insulation : Moisture barrier and rockwool

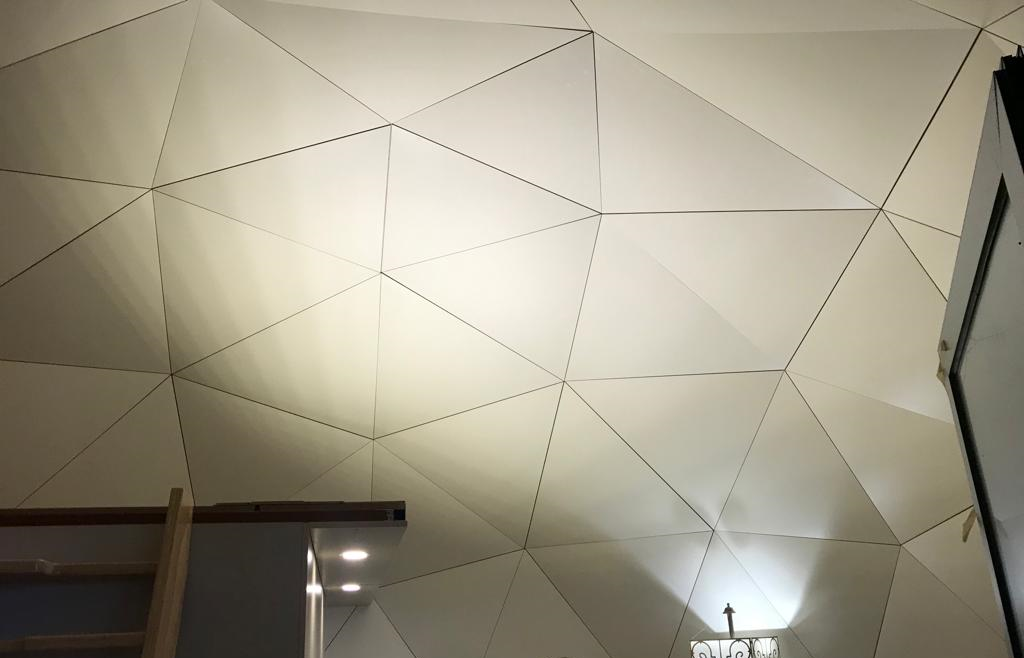

İç Kaplama Seçenekler
Interior Lining Options:

  • MDF Lam - MDF Laminated
  • Lake - Lacquer Paint
  • Doğal Ahşap Kaplama - Natural Wood Veneer

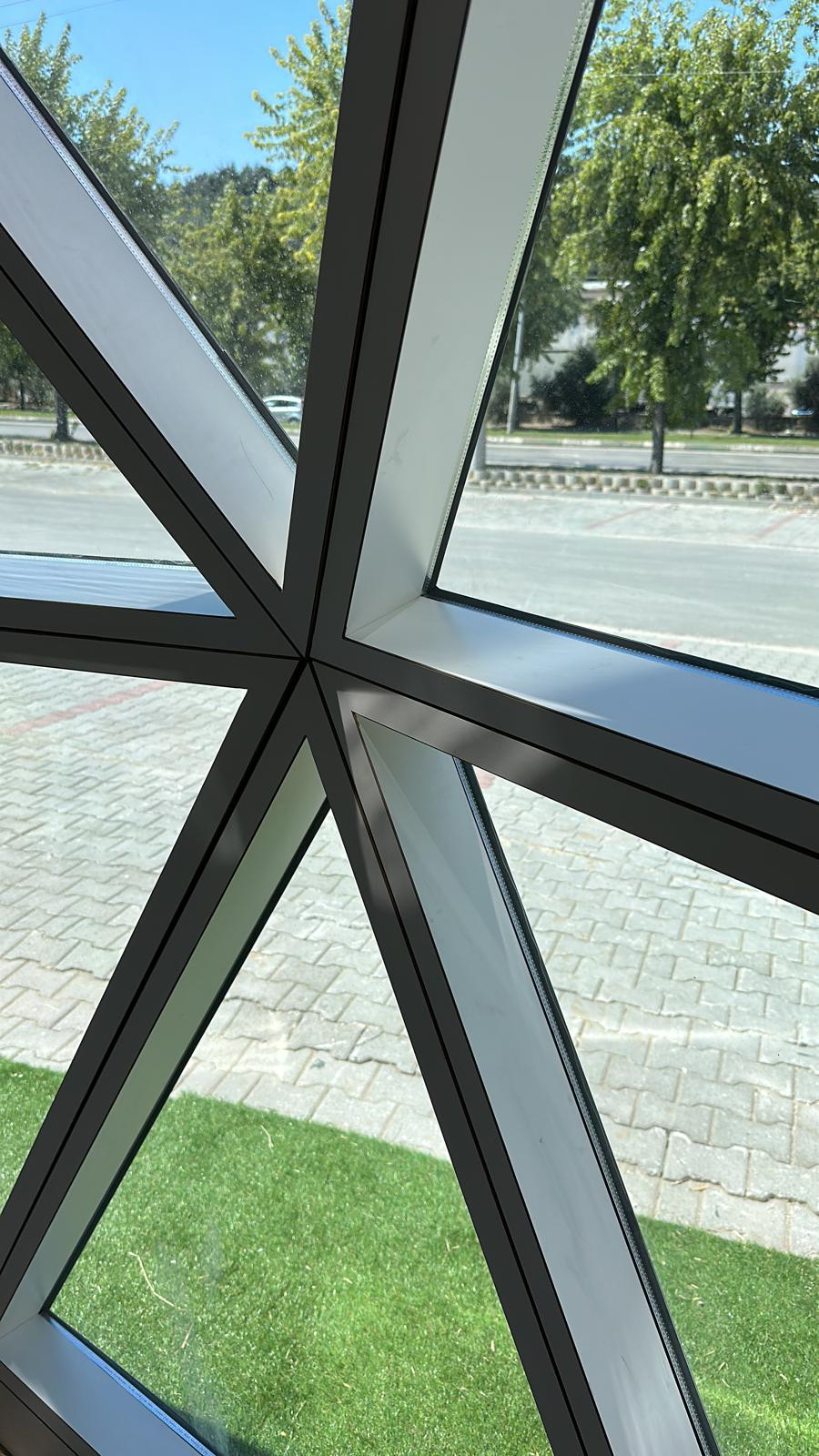

Camlar
Windows

9 adet Temperli Çift Cam.
9 pieces of tempered double glass

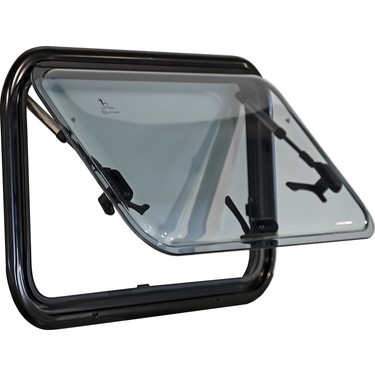

5 adet açılır kapanır polikarbon karavan camı.
5 retractable polycarbonate caravan windows


Kapılar
Doors

Çift Giriş Kapısı : Alüminyum Dış Kapı + Mobilya İç Kapı
Double Entry Door: Aluminum Exterior Door + Furniture Interior Door

Mobilya Banyo Kapısı
Furniture Bathroom Door


Mutfak Beyaz Eşyalar
Kitchen Household appliances

Ankastre Ocak - Built-in Cooker
Ankastre Fırın - Built-in Oven
Ankastre Bulaşık Makinası - Built-in Dishwasher
Aspiratör - Aspirator

Mutfakta verilen beyaz eşyalar TEKA markadır ve fiyata dahildir. Ürünler TEKA markasının global garantisi altında olacaktır.
Household appliances provided in the kitchen are TEKA brand and are included in the price. The products will be under the global guarantee of the   brand.


Sabit Mobilyalar
Fixed Furniture

  • Mutfak Dolabı, evye ve Mutfak Tezgahı.
    Kitchen Cabinet, Sink and Kitchen Counter
  • Banyoda Lavabo Dolabı.
    Sink Cabinet in the bathroom
  • Gömme Rezervuarlı Klozet.
    WC pan with built-in cistern
  • Kompakt akrilik duş.
    Shower area in compact acrylic structure
  • Üst katta çift kişilik yatak ve iki adet komodin
    Upstairs double bed and two nightstands
  • Üst kata çıkan geniş , rahat merdiven
    Comfortable wide staircase leading to the upper floor
  • Merdiven altında depolama alanları ve elbise dolabı
    Storage areas and wardrobe under the stairs
  • Salon duvarında bir adet açılır kapanır yatak
    Separate pull-out bed on the living room wall
  • Yatak yanında televizyon koymaya uygun altyapı ve dolap
    Infrastructure and cupboard suitable for placing a TV next to the bed


Temiz Su Tesisatı
Clean water system

  • Mutfak Evyesinde Sıcak-Soğuk Su Bataryası
    Hot-Cold Water Faucet in Kitchen Sink
  • Mutfakta bulaşık makinası ve çamaşır makinası için su beslemesi (çamaşır makinası yok)
    Water supply for dishwasher and washing machine in the kitchen (no washing machine)
  • Mutfakta elektrikli su ısıtıcı için soğuk su beslemesi ve sıcak su dönüşü altyapısı (Isıtıcı Yok)
    Cold water supply and hot water return infrastructure for the electric water heater in the kitchen (no heater)
  • Banyo Lavabosunda Sıcak-Soğuk Su Bataryası
    Hot-Cold Water Faucet in the Bathroom Sink
  • Duşta Sıcak-Soğuk su Bataryası
    Hot-Cold Water Faucet in the Shower
  • Klozette taharet musluğu
    Bidet in the toilet
  • Banyoda su tesisatı ana kesici vana
    Plumbing main shut-off valve in bathroom

Pis Su Tesisatı
Sewage System

  • Mutfak evyesi altında su gideri
    Water drain under kitchen sink
  • Mutfak evyesi altında bulaşık makinası ve çamaşır makinası için pis su gideri
    Drain for dishwasher and washing machine under the kitchen sink
  • Banyo Lavabosu altında su gideri
    Water drain under bathroom sink
  • Duş altında su gideri
    Water drain under the shower
  • Klozet gideri
    Toilet drain

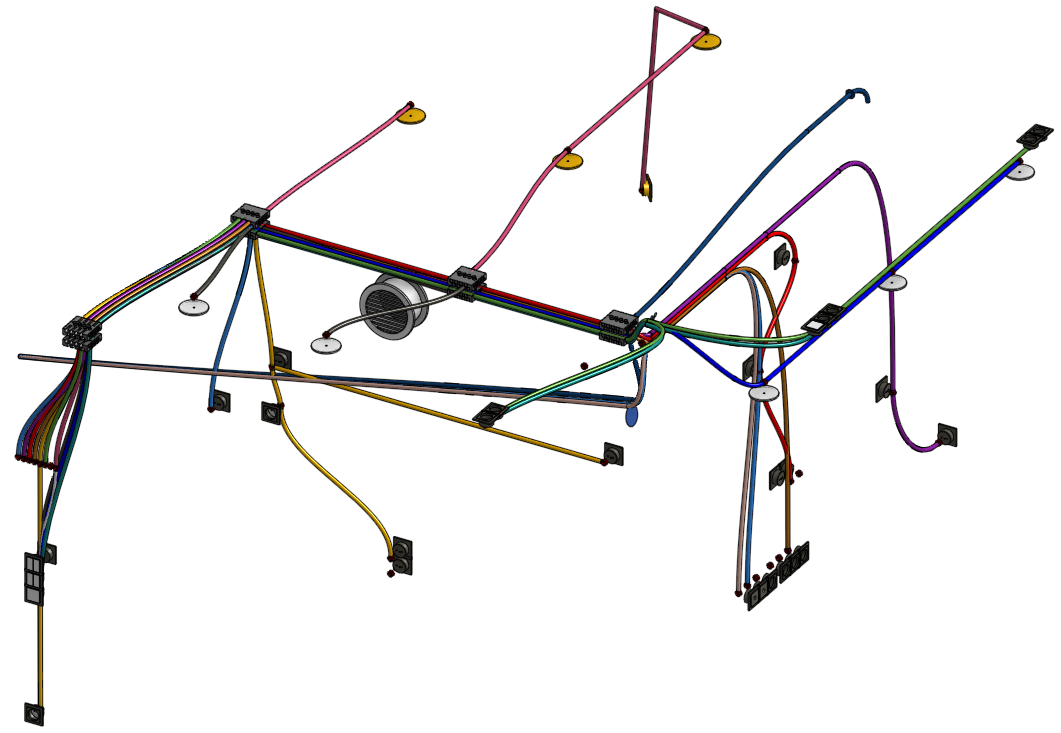

Elektrik Tesisatı
Electrical Installation

  • Elektrik kabloları halojen free yanmaz kablodur.
    Electrical cables are halogen free fireproof cable.
    • Mutfak aydınlatması, komütatör ile iki grupta 3 adet led spot
      Kitchen lighting, 3 led spotlights in two groups with commutator
    • Banyo aydınlatması, komütatör ile iki grupta 2 adet led spot
      Bathroom lighting, 2 led spotlights in two groups with commutator
    • Salon aydınlatması, komütatör ile iki grupta 3 adet led spot
      Hall lighting, 3 led spotlights in two groups with commutator
    • Kubbenin en üst noktasında lamba takmak için 2 x 1.5 mm çok damarlı TTR  elektrik kablosu kullanılacak, ucuna klemens takılacaktır. Tavan sarkıt armatür verilmeyecektir.
      2 x 1.5 mm multi-core TTR electric cable will be used to install a lamp at the top of the dome, and a terminal will be attached to the end. Ceiling pendant luminaires will not be provided.
    • Yatak odası aydınlatması, biri aşağıda diğeri yatak yanında iki adet vavien düğme ile kontrol edilecek.
      The upper bedroom lighting will be controlled by two vavien switches, one below and one next to the bed.

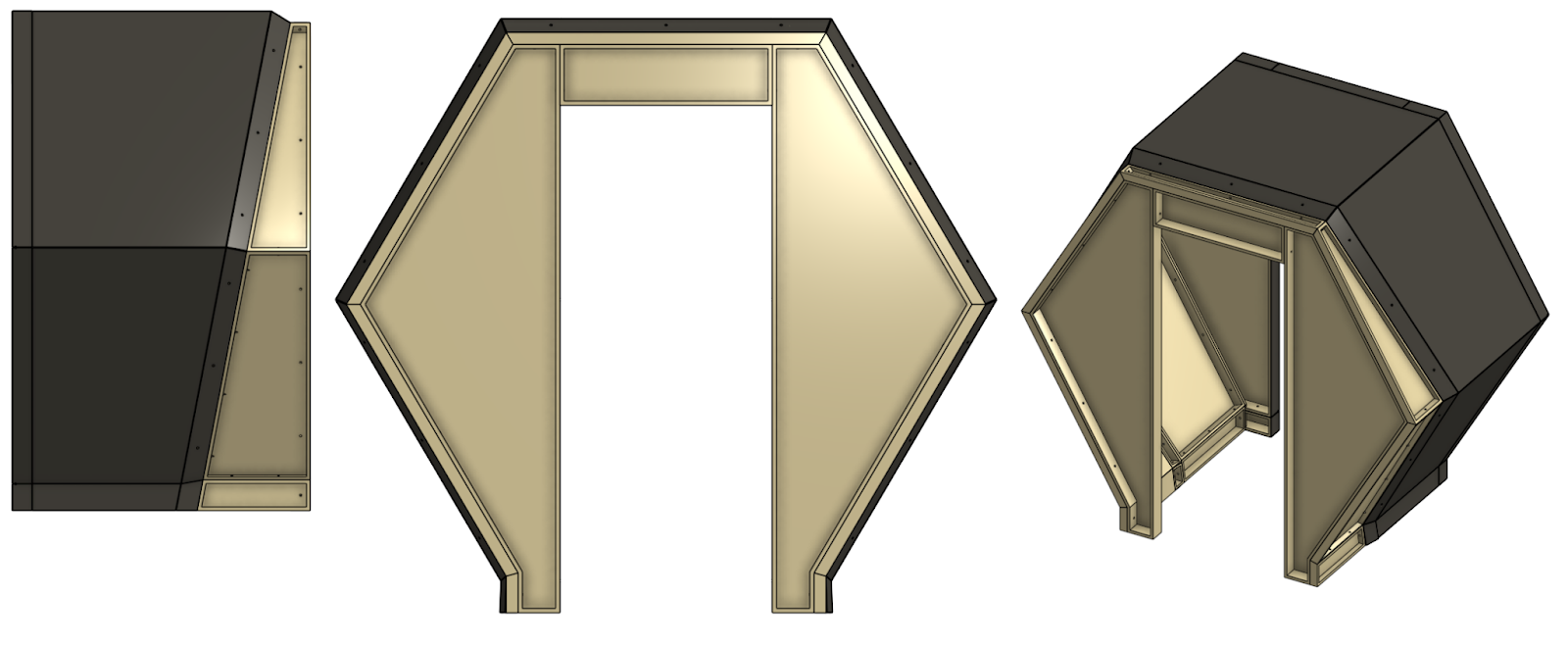

  • Giriş Tünelinde RF Sensörlü Aydınlatma
    Lighting with RF Sensor in Entrance Tunnel
  • Yatak odasında 5 adet priz
    5 sockets in the bedroom
  • Banyoda bir priz
    A socket in the bathroom
  • Banyo girişinde bir priz
    A socket at the bathroom entrance
  • Mutfak tezgahında 3 priz
    3 sockets on the kitchen counter
  • Mutfak girişinde bir priz
    A socket at the kitchen entrance
  • Su ısıtıcı için ayrı elektrik hattı ve sigorta
    Separate power line and fuse for the water heater
  • Buzdolabı için ayrı elektrik hattı ve sigorta
    Separate power line and fuse for the refrigerator
  • Ocak ve fırın için ayrı elektrik hattı ve sigorta
    Separate power line and fuse for hob and oven
  • Televizyon ünitesi için ayrı güç hattı ve sigorta
    Separate power line and fuse for the television unit
  • Kubbe alt süpürgelikler elektrik kablo kanalı olarak kullanılacaktır.
    Dome lower skirting boards will be used as electrical cable ducts.

Kubbe alt süpürgeliklerde toplam 4 adet priz verilecek prizler birbirinden 2 metre aralıkla konuşlandırılacaktır. Priz kabloları 3 x 2.5 mm2 TTR kablo olacak ve 16 A elektrik W otomat ile sigorta olacaktır.
A total of 4 sockets will be provided on the dome bottom skirting boards, and the sockets will be placed 2 meters apart from each other.  Socket cables will be 3 x 2.5 mm2 TTR cables and 16 A electricity will be fused with W automaton.


Isıtma - Soğutma Sistemi
Heating - Cooling System

  • Isıtma için döküm soba
    Cast stove for heating

  • Klima borulaması için uygun boru çıkışı verilecektir. (Klima dahil değildir.)
    Appropriate pipe outlet will be given for air conditioner piping. (Air conditioning is not included.)

Havalandırma Tesisatı
Ventilation system

  • Mutfak aspiratör için fan egzoz çıkış kanalı yapılacak ve duvar içine gizlenecektir.
    Fan exhaust outlet duct will be made for the kitchen aspirator and it will be hidden inside the wall.

WC de elektrikli bir adet fan mevcuttur ve borusu duvar içinden çekilecek ve kullanıma hazır olacaktır.
There is an electric fan in the WC and its pipe will be pulled through the wall and will be ready for use.
